      AutoMixer FAQ

      A Comprehensive Guide to Features, Purchasing, and Support

      FAQ

      • What is the AutoMixer? Where can I get one?

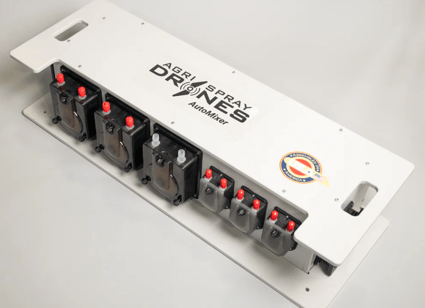

      The AutoMixer is a turnkey solution for spraying drone operations. It provides a streamlined way of mixing agro chemicals with precision and minimal human intervention. The AutoMixer can be bought at the Agri Spray Drones online store.

      • What are the dimensions of the AutoMixer?

      The AutoMixer has a rectangular shape with 38 x 16.5 x 9 inches

      • What is the flow capacity of the AutoMixer?



      Agri Spray Drones AutoMixer Specifications

      Pump System

      Power consumption (W)

      Flow rate (gal/min)

      Flow rate (L/min)

      1 (Carrier)

      108 W

      ~ 3 gal/min

      ~ 12 L/min

      2

      54 W

      ~ 1.5 gal/min

      ~ 6 L/min

      3

      42 W

      ~ 1/8 gal/min

      ~ 0.8 L/min

      4

      42 W

      ~ 1/8 gal/min

      ~ 0.8 L/min

      5

      42 W

      ~ 1/8 gal/min

      ~ 0.8 L/min

      TOTAL

      288 W at peak cons.

      ~ 5 gal/min

      ~ 20L/min

      • Where can I get fittings for the AutoMixer?
        • There are two options to set up your AutoMixer:

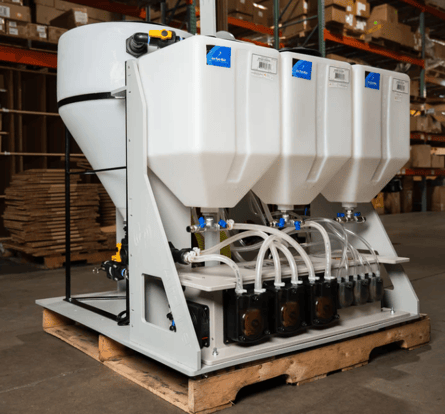

          You can buy the Mixing Station, which is the Agri Spray Drones’ complete solution for agro chemical management, which comes with the AutoMixer and needs only an external power and water source (such as a 200 gallon IBC tank) to product and deliver a precisely mixed and stirred agro chemical solution to your drone.

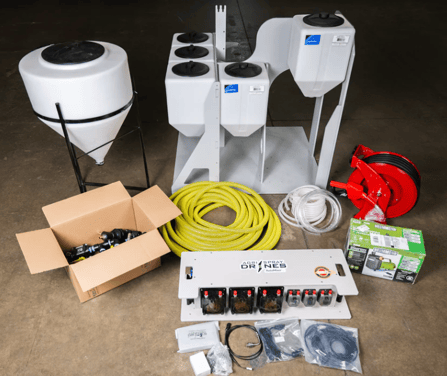

        • Given the modular nature of the Auto Mixer, you can also create your own setup, with your own tanks, and purchase the parts and fittings for it on the Agri Spray Drones online store, by searching for Auto Mixer on the search bar on the top right of the page.
      • Touch Screen isn't working, what do I do?
        • First check the input mode on your screen by pressing the button with three white dots, cycling through VGA, up until HDMI. Leave the screen in the HDMI mode. If nothing shows up, touch the screen around the center area to start up the system. Check for the connection in the HDMI cable that comes out of the screen and goes into the AutoMixer. Restart the AutoMixer. Call the AutoMixer Tech Support line at +1 (573) 226-4767.
      • How can I update the AutoMixer? Do I have to pay for it?
        • To update the AutoMixer, from the Welcome Screen go into setting by clicking the gear on the top right corner. Use the SSID drop down to choose an available WiFi network, type the password in the available field and click the Connect button. Now click Check for Available Updates, and if any updates are available, your Auto Mixer will download it and install it, automatically rebooting soon after. The version in the Welcome Screen will change accordingly. The updates to the AutoMixer firmware are free.
      • I found a bug, where can I report it?

      You can use the Bug Report found at linktr.ee/AutoMixer to report bugs and make suggestions about the Auto Mixer.

      • What is the temperature range for operating the Auto Mixer?

      Due to it’s pumping system, the Auto Mixer can operate from 40F (5ºC)  on the lower end up  to 122F (50ºC) on the upper end.

      • What do I use to attach my level sensor to my batch tank?
        • You can use silicon glue or epoxy  glue to attach your Level Sensor to the Mixing Tank.
