AutoMixer V4 First Boot

Quick description of how to power on the AutoMixer for the first time.

Thank you for purchasing the Automixer V4.0, and welcome to the quick start guide! In the following pages you will uncover how to get your Automixer up and running for the first time. We will begin with diagrams to explain the various pumps, ports, and buttons on the AutoMixer. We will then demonstrate the proper method for connecting the Automixer and booting it up for the first time. Let’s begin!

Included with your AutoMixer:

• Xenarc Touch Screen
• Display Power Supply
• Display Stand
• Display Cable Bracket
• Display Cable
• Level Sensor
• AC Power Cable

Step 1: Plug the barrel connector of the included display power supply into the corresponding port on the back of the display. Plug the power supply body into a 120V outlet.

Step 2: On the included display cable, find the rectangular, 26-pin plug labeled “TSH/YH.” Plug this into the corresponding receptacle on the back of the display.

Step 3: Press the power button on the display once to turn it on. When it powers on, it should display a blue screen with a small black box in the upper lefthand corner noting the current display input selected. If “HDMI” is not shown, press the “Input Source” button until the HDMI display input is selected.

Step 4: On the opposite end of the display cable you will find two circular plugs which are labeled “HDMI” and “USB.” Connect the HDMI plug into the “HDMI - Display” Receptacle and the USB plug into the “USB - Display” receptacle. Ensure the connectors are fully seated by listening for an audible click noise.

Note: The display must be powered on and connected to the AutoMixer before the AutoMixer is powered on. Failure to do so will result in display sizing issues.

Step 5: Included with the AutoMixer is an AC power cable. Plug the circular plug into the AutoMixer “AC Power In” plug, and the NEMA-15 side into a 120V outlet. The AutoMixer will turn on as soon as it is connected to AC power through this plug.

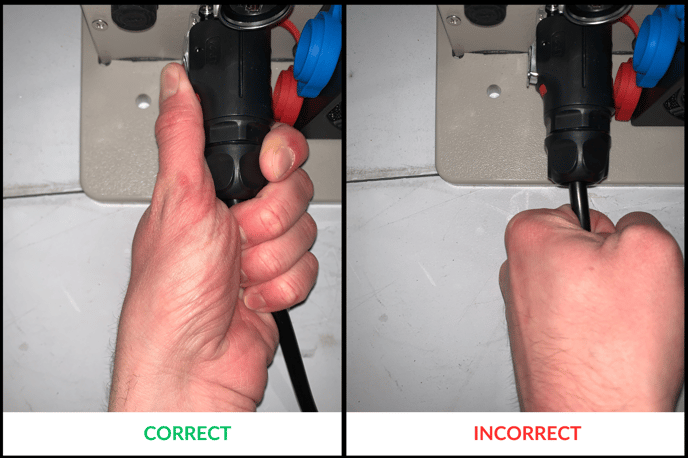

Warning: When unplugging the power cable from the AutoMixer, you must first press the silver tab labeled “push” to release the connector. Then pull the power cord out of the socket, making sure to grab the plug itself and not the cable. NEVER pull the AC power cord by the cable - doing so may damage the cable and could put you at risk of electric shock or fire.

Note: The AutoMixer usually takes 30 seconds - 1 minute to fully boot.

If you have followed this guide successfully, your AutoMixer should now be showing the “Welcome” Page in the app!
