A guide showing the location of all part serial numbers on different Agras Drones.
Drone
The drone serial number will either be found on the nameplate of the drone, or the QR code sticker on one of the frame rails. (T40 will start with 64TB, T20P will start with 64UB, T50 will start with 63YB, T25 will start with 63N1, and T30 with a 3U or 52.
Arm
The arm serial number is found at the end of the arm on top by where the ESCs mount.
Frame
The frame serial number for each individual frame rail is found inside the frame. NOTE: Use the printed serial number not a serial number on a sticker for this part.
Propulsion Motor
The propulsion motor serial number is under the prop and prop gaskets.
ESC
The ESC serial number is located on the face of the ESC near the motor plug.
AEM

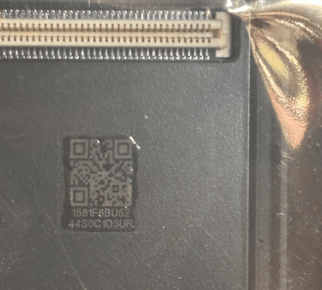

The aerial electronics module serial number is found on the inside face of the module (the side facing the cable distribution board) or on the QR code sticker on another face of the module (location of sticker may vary).
Spray Module (T30/T20P/T40)

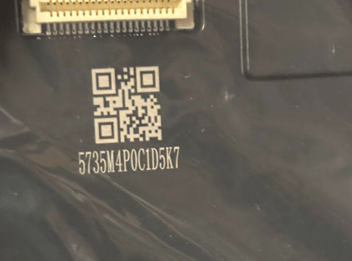

The spray module serial number is found on the inside face of the module (the side facing the cable distribution board).
Spray Power Board (T25/T50)
The spray power board serial number is found on the face of the board facing away from the drone body.
RF Module
The RF module serial number is found on the inside face of the module (the side facing the cable distribution board).
Cable Distribution Board
The cable distribution board serial number is on the face of the board pointed in toward the body of the drone.
Power Distribution Board
The power distribution board serial number is on top of the board for the T30, T20P, and T40. The power distribution board serial number is on the side of the T50/T25 board.
Forward Vision Sensor
The forward vision sensor serial number is on the front of the module.
FPV Camera
The FPV camera serial number is on the bottom of the camera module itself (T40/T20P) or the top of the base (T50/T25).
Auxiliary Light Module
The aux light module is found on the back of the module.
Omnidirectional Radar Module
The omnidirectional radar module serial number is on the bottom of the base of the module. This is for front and rear radar on the T50/T25, front radar on the T40/T20P, or radar mounted on the landing gear for the T30.
Rear Radar Module (T40/T20P)
The rear radar module serial number is on the back of the module facing away from the body of the aircraft.
RTK Antenna
The RTK antenna serial number is printed on the bottom of the module.
Flow Meter
The flow meter serial number is top of the module.
Pump Motor
The pump motor serial number is not printed in full on the module. You will have to hold the camera up to the QR code on the module until it reads the serial number and screenshot to save the QR code and serial number printed in one picture.

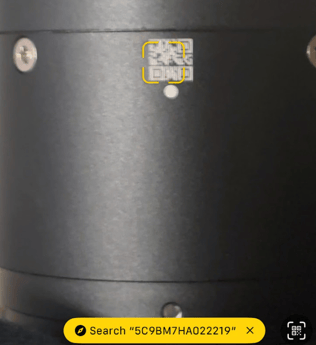

Centrifugal Nozzle
The centrifugal nozzle serial number is not printed in full on the module. You will have to hold the camera up to the QR code on the module until it reads the serial number and screenshot to save the QR code and serial number printed in one picture.
Spray Solenoid (T50)
The solenoid serial number is on the bottom of the module.
Weight Sensor
The weight sensor serial number can be found on any of the modules mounted on the frame.
Spray Adaptive Board (T40/T20P)
The spray adaptive board serial number is found on the back edge of the board.
