Articulating 4WD Tractor Installation - HD408 Auto Steer

This articles provides additional information to assist installation on 4WD articulating tractors

Review this document for the procedures unique to installation on an articulating tractors



Click Here to download "HD408 Articulating 4WD Tractor Install Manual"

Additional Instructions from the Manufacturer:

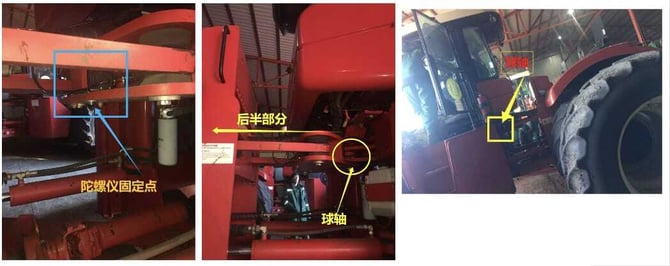

The gyroscope is installed as shown in the figure below (on the rear half near the articulation point). When the rear wheel rotates left and right, the gyroscope follows the left and right rotation, and the fixed point is as close as possible to the rotation axis.

 The installation of other components is the same as that of a regular tractor. When performing quick calibration, the tractor type should be selected as "Articulated."

Measurement of the wheelbase is: The distance from the center of the front axle to the center of the rotating shaft (articulation point).

Measurement from the antenna to the rear axle is: the distance from the center of the GNSS antenna to the center of the rotating shaft (articulation point). Note: When the GNSS antenna is installed behind the rotating shaft (articulation point), the value should be filled as a negative number.

Measurement of the distance from the antenna to the ground is the same as that of a regular tractor (height from orange antenna to flat ground).

Articulated tractor install example





Click Here for an Auto Steering System (Full Kit)
