HD408 AutoSteer - Installing a SIM card

For consistent satellite map updates without the use of a wifi connection, a cellular SIM card can be added by inserting it into the slot on the side of the monitor.

1. You will need a 4G "Data Only" SIM card for use with the system. Do not add a "voice plan" to the card.

2. Remove the access door on the right side of the monitor by removing the 3 screws (See photo reference 1 below). If this was not installed from factory, it will be included in the box with other accessories.


3. Install the SIM card into slot (See photo reference 2 below).


4. Reinstall the access door after inserting the card.


5. Navigate to the WIFI / Internet connection icon in the top left hand corner for connection setup (See photo reference 3 below).

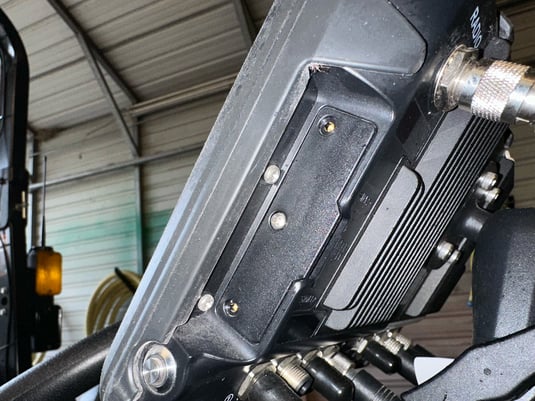

1. Access door

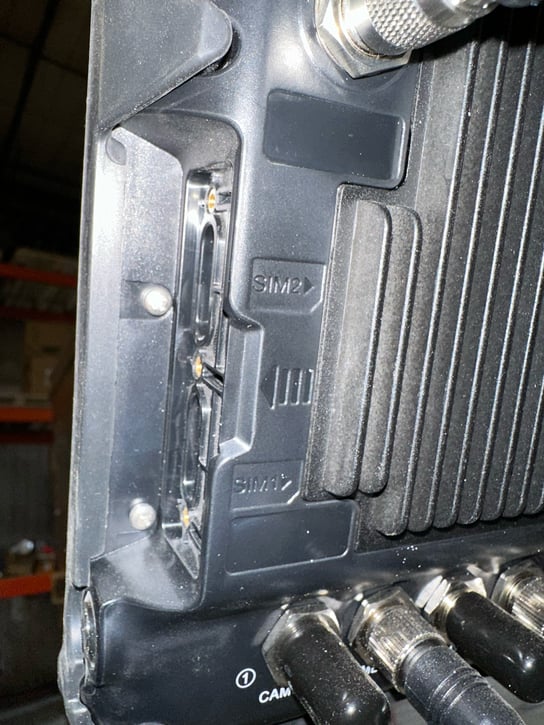

2. SIM card slots

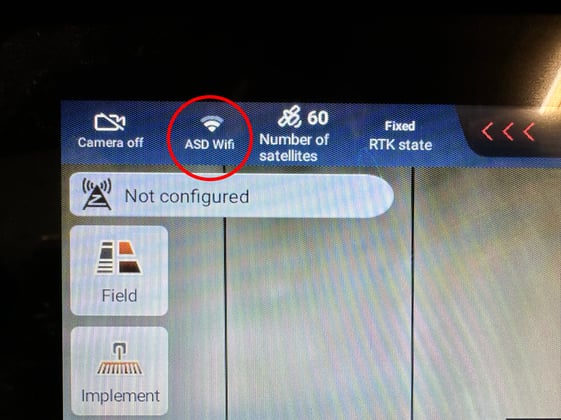

3. Internet connection icon
