J100 Angle Alignment Error (28-002)

J100 Angle Alignment error (28-002)

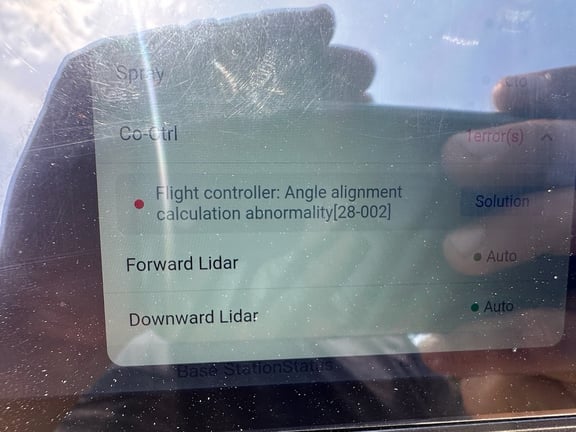

If experiencing the error in the photo above "Angle alignment (28-002)" Follow steps below.

Step 1. Fully Power Off the external and internal battery, and restart your drone.

Click Here for J100 Power Cycling drone properly

If completing a full power down and restart does not resolve the issue, continue to step 2.

Step 2. Perform a Compass Calibration

Click Here for the article on performing the J100 Compass Calibration

If performing the Compass Calibration does not resolve the issue, continue to step 3.

Step 3.  Replace the Left RTK (Main Antenna)

Click Here for a new J100 Main Antenna Assembly

Click Here for J100 How to Replace the RTK Antenna

If replacing the RTK Antenna does not resolve the issue, continue to step 4.

Step 4. Replace the CPU

Click Here for a new J100 CPU

(These are the steps we have seen resolve this issue.)

Please call the Tech line for further questions

Tech phone number  (573) 306-2818
