J100 Battery LED indicators

This article shows the J100 Battery LED indicators meaning. Therefore enhancing your ability to read what your battery is saying, and what the issue is.

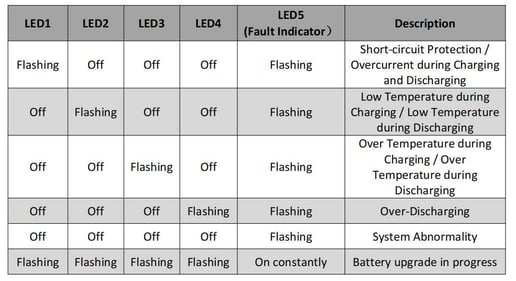

J100 Battery LED Indicators

• LED 1 and LED 5 flashing = Short-circuit Protection/ Overcurrent during Charging and Discharging.
• LED 2 and LED 5 flashing = Low Temperature during Charging/ Low Temperature during Discharging.
• LED 3 and LED 5 flashing = Over Temperature during Charging/ Over Temperature during Discharging.
• LED 4 and LED 5 flashing = Over- Discharging.
• Only LED 5 flashing = System Abnormality.
• LED 1,2,3,4 flashing and LED 5 On constantly = Battery upgrade in progress.

Note: If LEDs are flashing in a moving pattern from left to right.

This typically indicates firmware was not correctly updated and needs re-flashed.
