This article outlines the steps to take for a safe field entry and exit over or around obstacles, setting safety points and more.
Field entry and Exit Methods on J100
Steps to take:
1. Observe area between your drone and targeted field.
- Look at drone current location.(Blue triangle) circled in blue on picture below.
- Look at spray start point. (Green Dot) circled in blue on picture below.
2. Route Plan (using Safety points)
- Plan how you want the drone to navigate towards the spray start point avoiding obstacles.

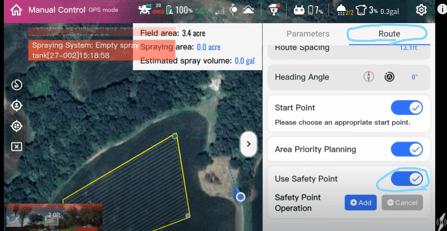

- Click Route in top right (circled in picture below)
- Click Use safety point (circled in picture below)

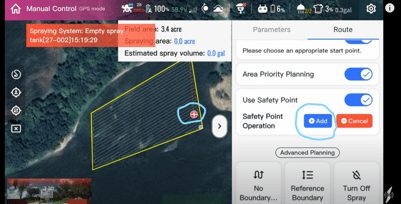

- When cross hairs show up move it to desired safety point and click Add (circled in picture below)
- Green notification should show at the bottom of scree saying "Add Successfully"
- Now a safety point has been added and the Drone will fly to it first, before going to spray start location.
- You can add several more safety points if you wish and they will be labeled by number. The drone will go to safety point 1 first, then safety point 2 second, and so on.
Rout Plan using (Fixed altitude to go over obstacles)

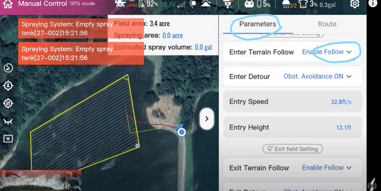

- For this method click "Parameters" then "enter terrain follow" shown below.

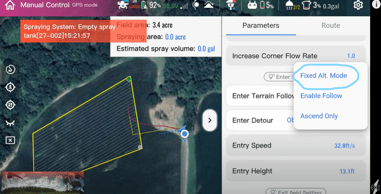

- Now select "Fixed Alt mode" ( this is a fixed height the drone will fly at during its transit to the spray start point.)
- Now select height of enter to the Spray start point (so ensure you select height to go over what obstacle is in the way)

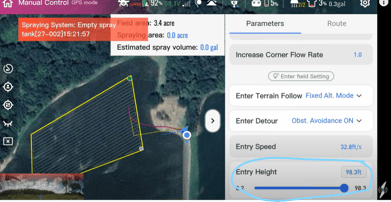

- Slide bar to desired height as shown below.

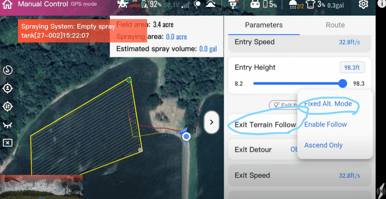

- Now select the " Exit terrain follow" then "Fixed Alt Mode" as shown below.
- Now select height of exit to the home point (so ensure you select height to go over what obstacle is in the way)

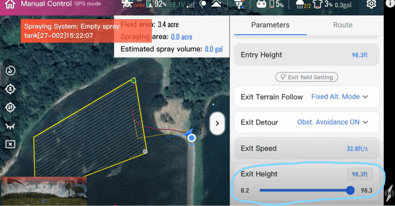

Slide bar to desired height for exit. Circled below.
Quick Note:
(The Fixed altitude method does use more battery due to climbing to a higher selected height, especially with a full tank)
For more information regarding Intelligent flight on the J100 for better understanding Click Here
