J100 Power Assembly Left/Right Rear Power Overcurrent. Errors (32-006), (32-014).

This article outlines the steps and process for troubleshooting the Power Assembly Overcurrent Errors (32-006), and (32-014).

Troubleshooting Power Assembly Left Rear Power Overcurrent, and Right Rear Overcurrent. Errors: (32-006), (32-014).

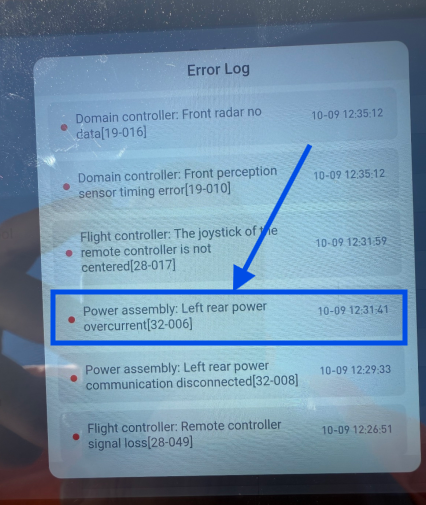

A picture of this error is shown below.

Steps to Troubleshoot These Errors:

1. Completely restart the drone, including the internal battery and external battery. To perform a full restart. Click Here for an article on how to power cycle your J100.

2. If the issue persists after a full restart, the first step is to replace the ESC with a known working one or a new ESC to see if this is where the issue is.
Click Here for a new J100 ESC.

3. After replacing the ESC, complete another full restart. If the issue persists, the motor may need to be replaced. This issue is typically resolved by replacing either the ESC or the Motor, as one of those two components is usually the cause of this error.

(When Replacing The Motor, Ensure You Replace It With The Correct Motor CW or CCW, depending on which Arm Of the Drone you are Working On.)
Click Here for a new J100 CW Motor.
Click Here for a new J100 CCW Motor.
