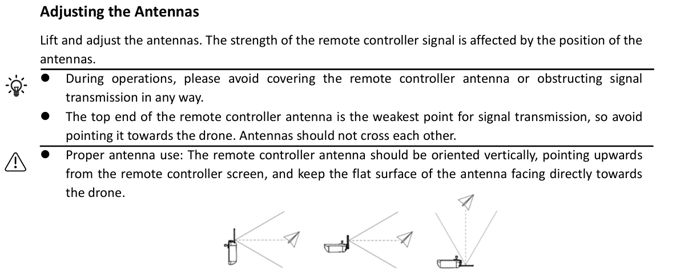

RC parts diagram, proper antennas use , and stick operations.

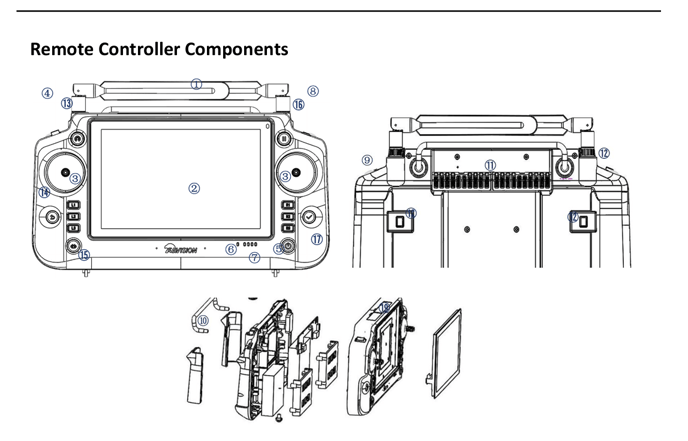

1. Antenna (Relays drone control and image transmission signal)
2. Touch screen (Tap to select. Android-based device to run Smart AG Pro App)
3. Joystick (controls drone movement)
4. Flight Mode Switch (attitude/manual/auto mode)
5. Power Button (Used to power the remote controller on and off. When the remote controller is off, press the button to check battery level.)
6. Status level LED (Indicated whether the remote controller is linked to the drone.)
Click Here for "J100 Remote Controller (RC) LED indicators and charging guide."
7. Battery LEDs (Displays current battery level of the internal battery.)
8. Spray/Spread button (Press to start or stop spraying/spreading in Manual operation mode.)
9. FPV Dial (Turn to adjust the FPV angle)
10. Handle
11. Air Outlet (Used for heat dissipation. Do not cover the air vent during use.)
12. Customizable Button
13. Link Button (Between the remote controller and the drone)
14. Back Button
15. Return/Land Button
16. Hover Switch (in any mode)
17. Save/ Confirm Button
18. Internal Battery
19. Remote Controller Ports (USB port, SIM Card Slot for mobile network connection, and Type-C Charging Port to charge the remote controller)

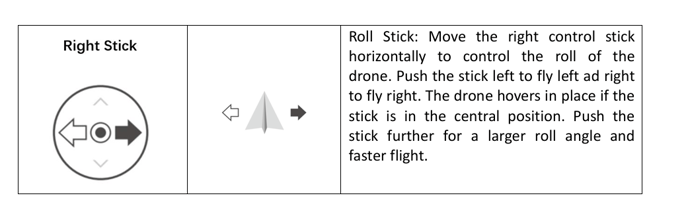

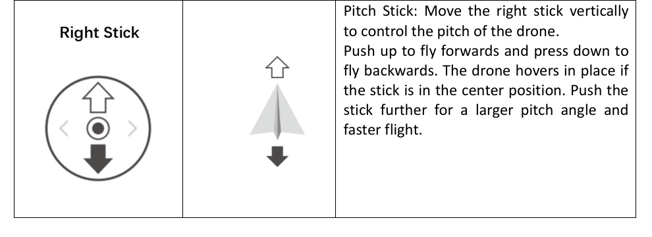

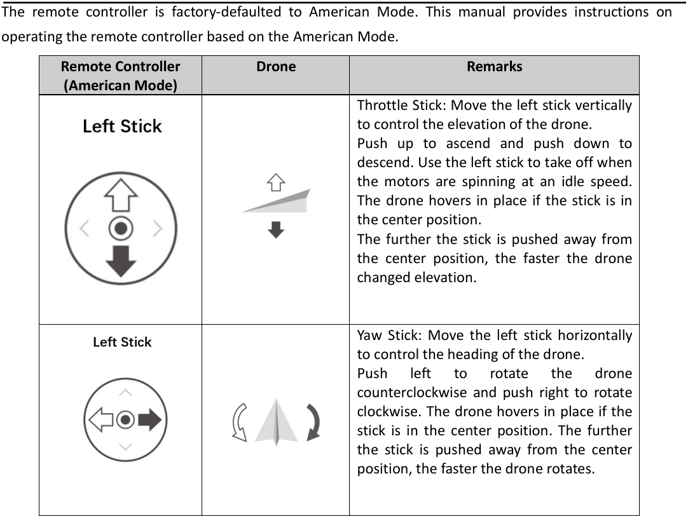

Operating Right and Left Joysticks.
NOTICE: if you are flying in manual. Failure to turn off manual vertical obstacle avoidance may prevent drone from landing during manual flight. Click Here for "How to turn manual vertical obstacle avoidance off".
Click Here for "J100 Left Rocker Switch Flight Functions"
Click Here for "J100 RC Rocker & Wheel Calibration"
Click Here for "J100 Remote Controller (RC) LED indicators and charging guide."
Click Here for "J100 Intelligent Flight information"
