      J100 Troubleshooting RTK Magnetic GNSS Antennas. Errors: (28-013), (28-007), (28-003).

      Troubleshooting Errors: (28-013), (28-007), (28-003). This outlines the step-by-step process for troubleshooting RTK magnetic GNSS antennas on the J100 to ensure optimal performance and accuracy.

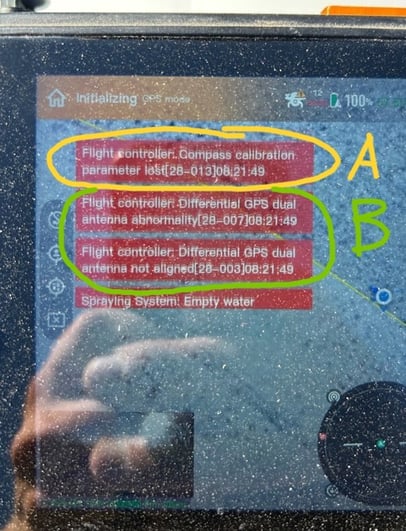

      Errors we are troubleshooting for listed below in picture.

      Errors: (28-013), (28-007), (28-003).

      unnamed-4

      Key Steps



      1. Identifying Errors 0:11

      • Look for error messages related to:

        • Compass calibration error (marked in the picture as "A")

        • Dual antenna abnormality (marked in the picture as "B")

        • Alignment error (marked in the picture as "B")

      • Note: If multiple errors are present, address them in order.



      2. Replacing the Left Antenna 0:46

      • If only the compass calibration error is displayed (marked in the picture as "A"):

        • Position yourself facing the same direction as the J100.

        • Replace the left antenna first, as it contains the electronic compass and chip board.

      Click Here for J100 Main-Antenna Assembly



      3. Replacing the Right Antenna 1:26

      • If you encounter the middle error along with the second error (marked in the picture as "B"):

        • Start by replacing the right antenna.

        • If the issue persists, revert to the old right antenna and replace the left one.

      Click Here for J100 Sub-Antenna Assembly



      4. Final Troubleshooting Steps 1:46

      • If both antennas need replacement:

        • Ensure both new antennas are installed correctly.

        • Test the system after each replacement to identify if the issue is resolved.

      Cautionary Notes

      • Always power down the J100 before replacing antennas to avoid electrical damage.

      • Handle antennas carefully to prevent physical damage.

      Tips for Efficiency

      • Keep spare antennas on hand to minimize downtime during troubleshooting.

      • Document any errors and the steps taken for future reference and analysis.
