J150 Adjusting Power Input (Watts) to the Charger

This article covers the steps to adjusting the power input (Watts) to your J150 charger. This can be utilized if needing to adjust due to the generators capabilities.

To do this process, first ensure you have your RC connected to the Charger.

Click Here for J150 How to connect RC to the charger

Steps:

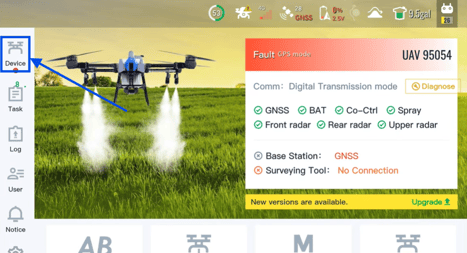

1. Select Device on your RC screen.

(Picture shown below).

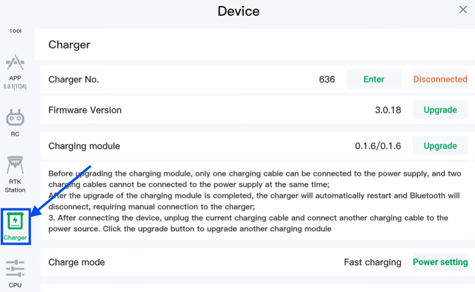

2. Scroll down until you see Charger on the left side of the RC screen and select Charger.

(Picture shown below).

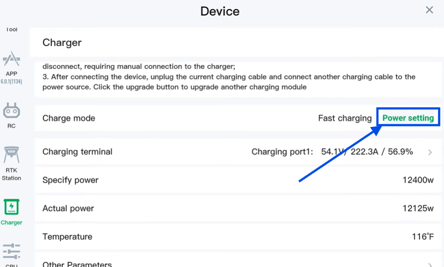

3. If the Generator isn't large enough to supply 12,000 watts, you can adjust this by clicking the "power setting"

(Picture shown below).

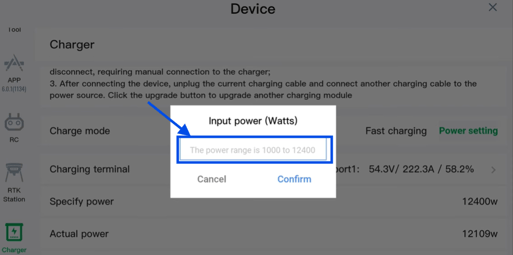

4. Now input the desired Input Power (watts) to the charger.

(Picture shown below).

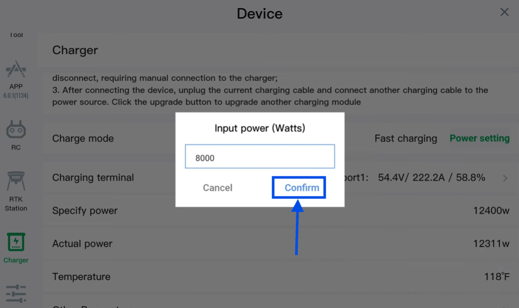

5. Once you have input the desired input power (Watts) select "Confirm".

(Picture shown below).

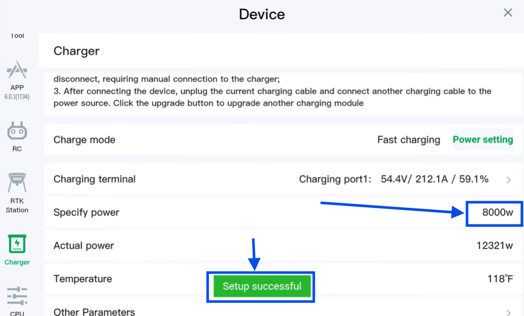

6. After selecting confirm, you should get a green indicator at the bottom of your RC screen that says "Setup Successful". You can confirm the power settings were saved by viewing the Specify power section; it should show the watts you just input in the previous step.

(Picture shown below).

Click Here for a J150 Charging Station
