J150 Changing Serial Number & Country for CPU.

This article provides the steps and URL address to go to for changing the Serial Number (SN) for the CPU as well as changing the country that the CPU is in on the J150

Steps:

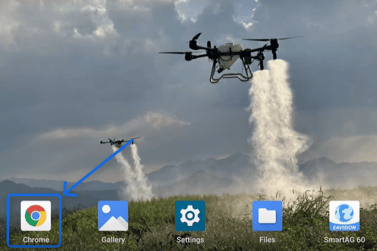

1. From your remote controller (RC) home screen select google chrome.

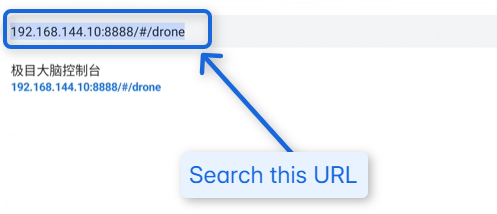

2. Search "192.168.144.10:8888/#/drone" in the URL search bar.

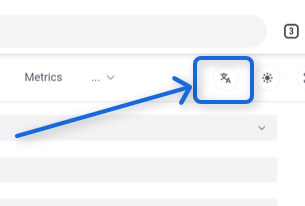

3. Once page is loaded, Select the Language Icon in the top right corner.

(Shown below in the picture).

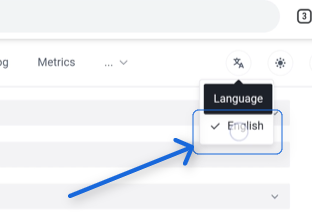

4. Select English from the drop-down. (Shown below in the picture).

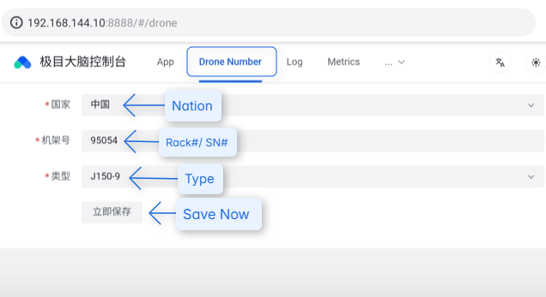

If this does not translate the page to English, (view the photo below for what the symbols indicate, Under the Drone Number section).

The first box is Nation.

The second box is SN#.

The 3rd box is Drone Type.

The 4th box is the Save now button.

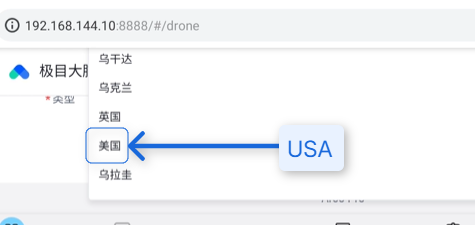

5. Select the first box, Nation, and select the country you are in.

( The picture below shows USA symbol).

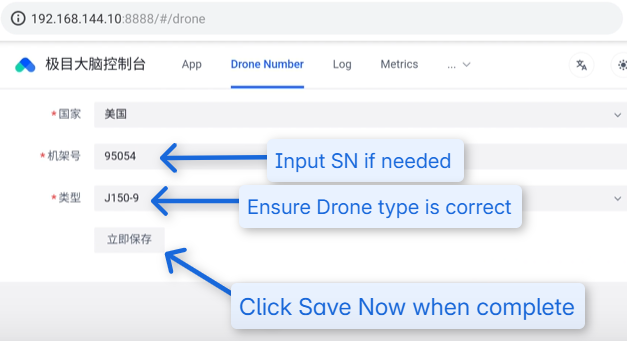

6. Select the 2nd box, SN#, and input Serial Number(SN). If replacing the CPU this will need to be done.

7. Ensure the Drone type is correct "J150" ,when it is complete click Save Now button.

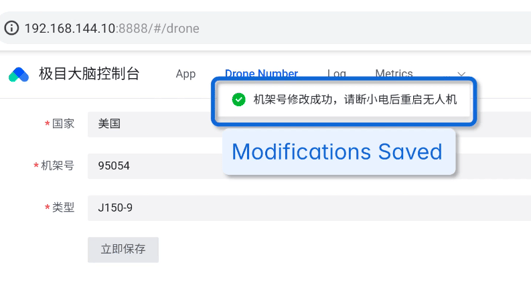

8. After clicking Save Now, a Green check mark should appear near the top of the web page. This means modifications have been saved. ( Picture shown below).
