J150 How to Adjust Arm Lock Tension

Step by step guide on how to adjust the arm lock tension on the EAV J150 drone successfully.

How to Adjust Arm Lock Tension on the EAVJ150





1. Identify the problem with the arm lock handle 0:02

  • This walkthrough shows how to properly adjust the arm lock tension on the EAVJ150.

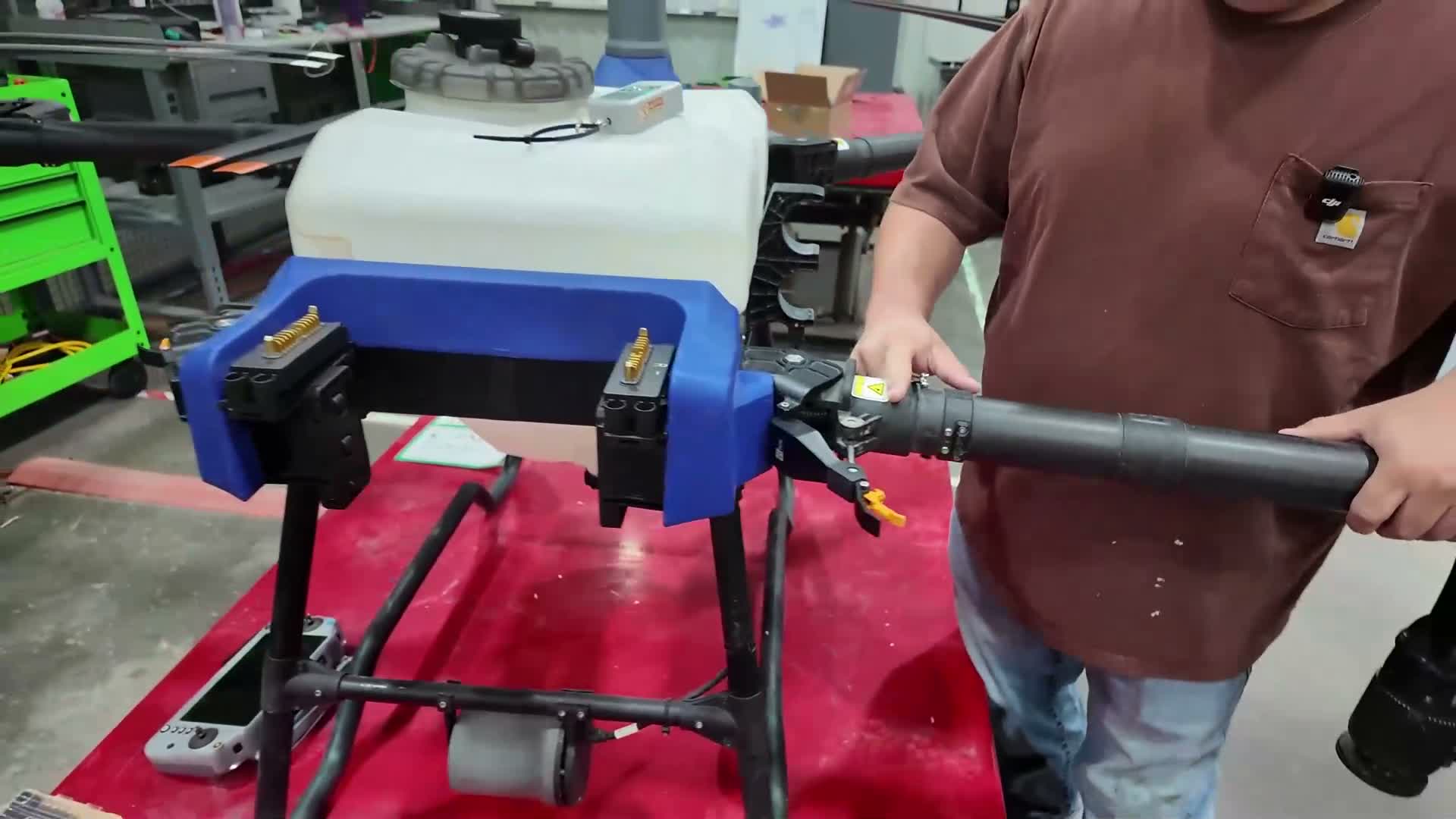

  • Start by checking how the arm lock handle closes.
  • If you have to use extreme force to close it, the tension is too tight.
  • Excessive force can damage:
    • the bolt,
    • the arm,
    • or the rod inside the assembly.



2. Tighten the shaft into the dowel using a 6 mm wrench 0:27

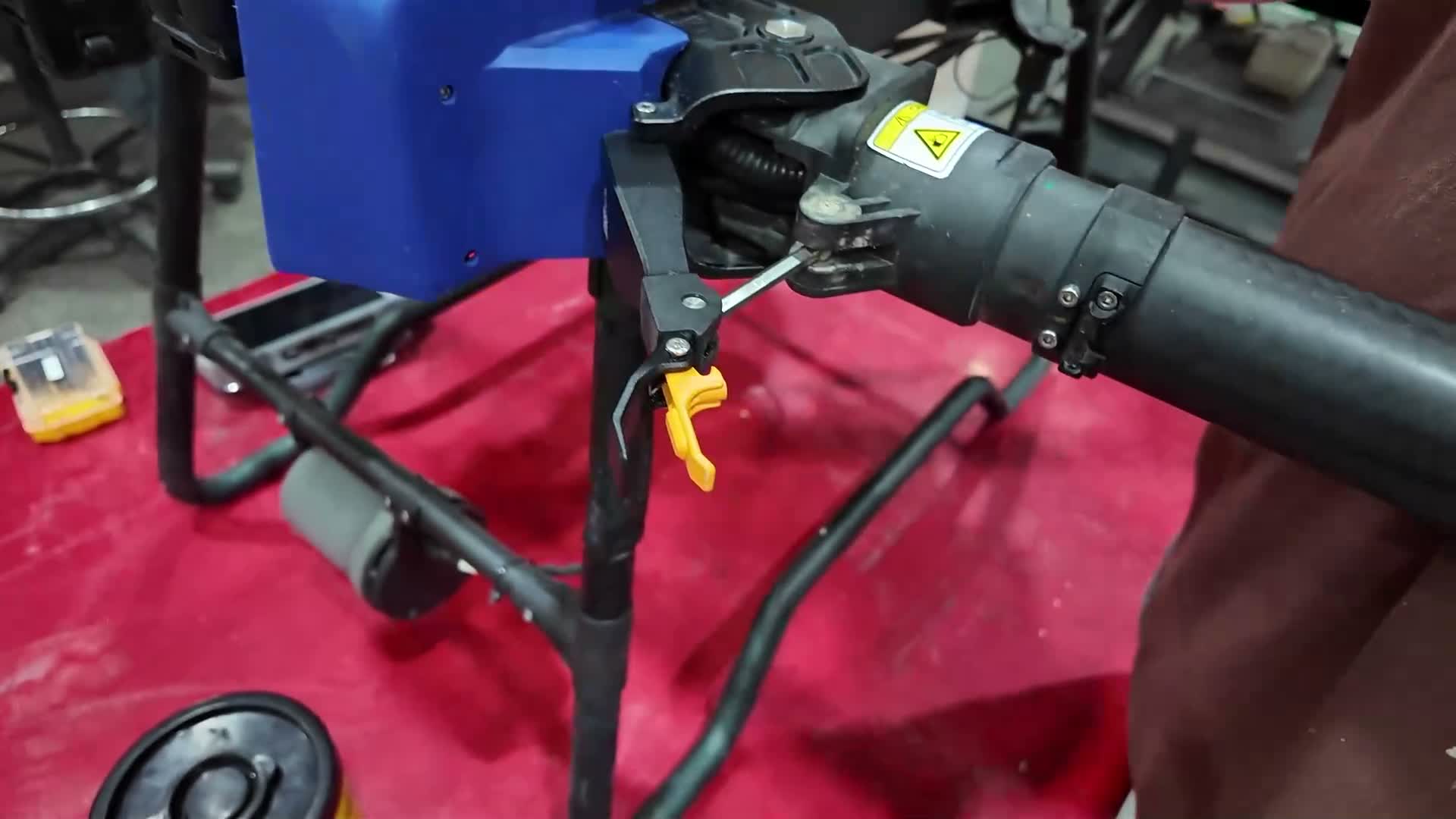

  • Use a 6 mm wrench to tighten the shaft further into the dowel on the arm lock handle.
  • Turn it a couple of rotations to increase the tension adjustment.
  • After tightening, test the handle again to see if the closing force has improved.



3. Check the handle feel after adjustment 0:45

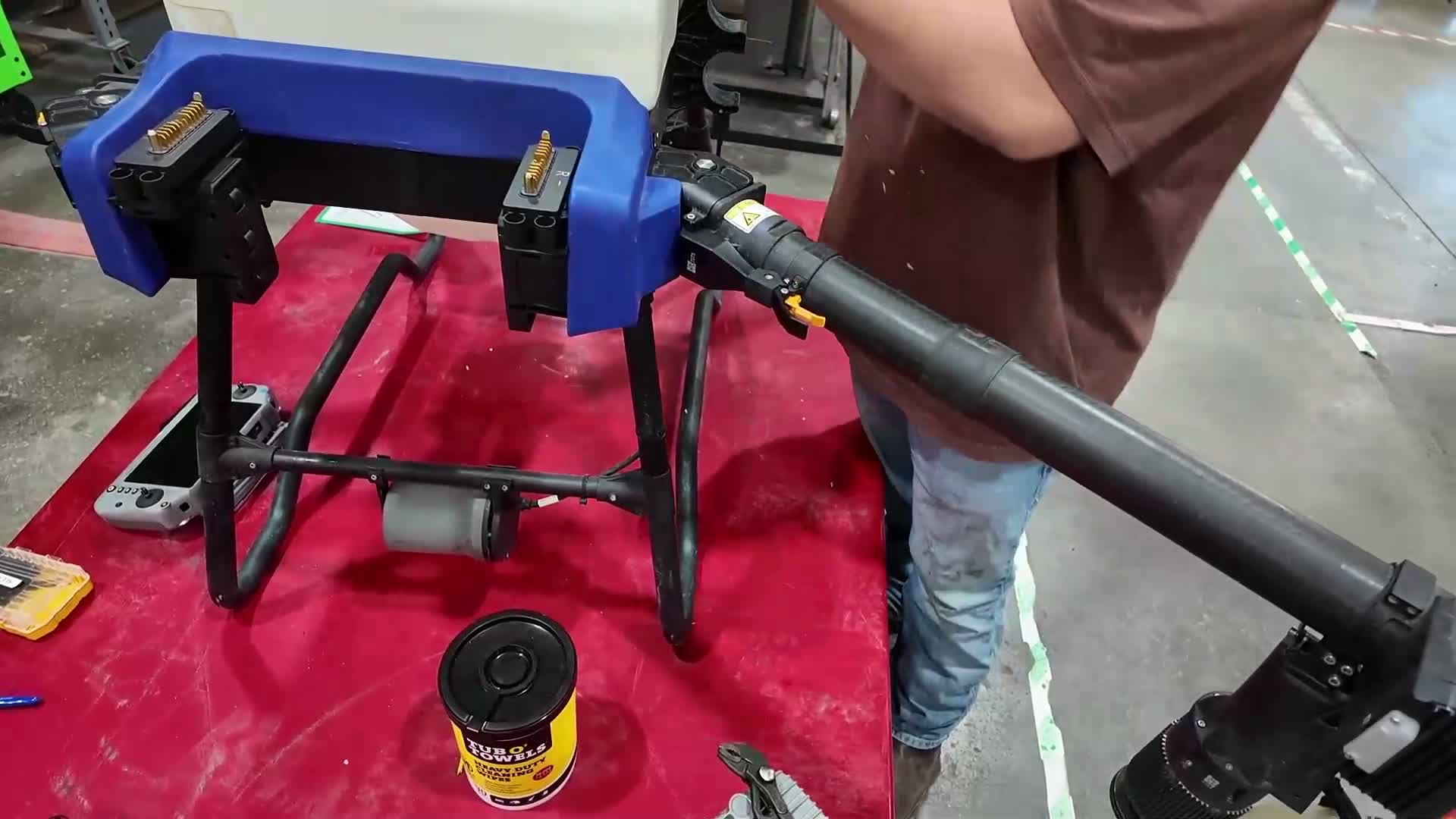

  • Re-close the arm lock handle and evaluate the effort required.
  • The handle should close with much less force than before.
  • The goal is a smooth close without needing to strain or force it.



4. Verify the tension with a force gauge 0:53

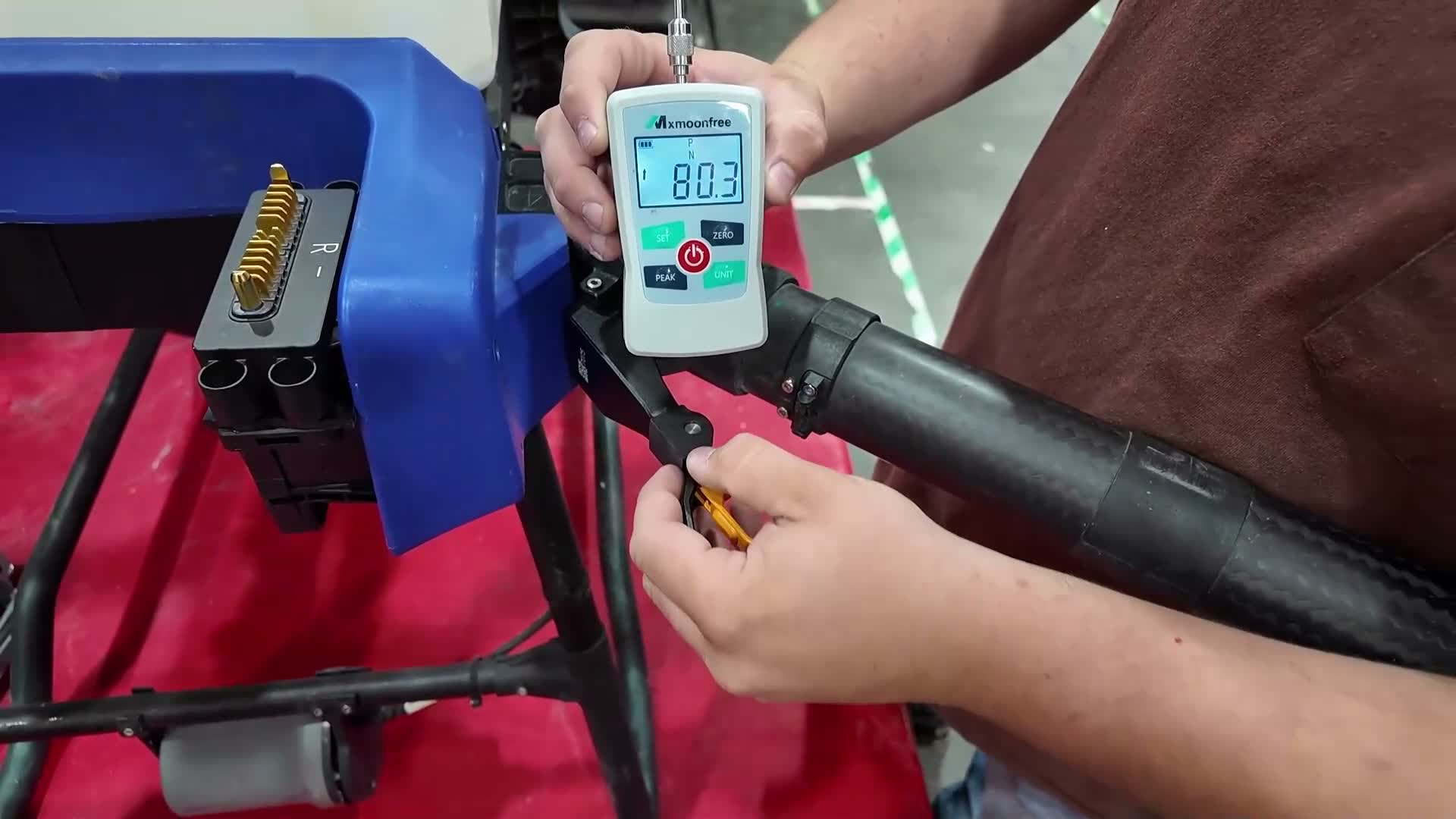

  • Use a force gauge set to peak mode so it captures the maximum pull force.
  • Zero the gauge before testing.
  • Attach a zip tie around the locking trigger and handle.
  • Pull on the gauge to measure the arm lock tension in newtons.



5. Confirm the reading is within spec 1:15

  • For the EAVJ150, the target tension is 75 N ± 5.
  • In the example, the reading is 80 N, which is within the acceptable range.
  • If the reading falls outside the range, make additional small adjustments and re-test.



6. Finish the adjustment 1:26

  • Once the handle closes properly and the force reading is within spec, the adjustment is complete.
  • This confirms the arm lock tension is set correctly on the J150 / EAVJ150.
