This article outlines the steps to merge consecutive fields using connection points between separate fields. This newly added feature increases efficiency and operations of fields less than 1000 meters apart.
Quick note: You cannot merge fields that are more than 1,000 meters apart from each other.
Key Steps:
Step 1: Select Fields to Merge
-
Begin by selecting the fields you wish to merge. when you select the field should be outlined in yellow.
-
Click on the desired field and then click the 'merge' in the bottom right corner of your RC screen.

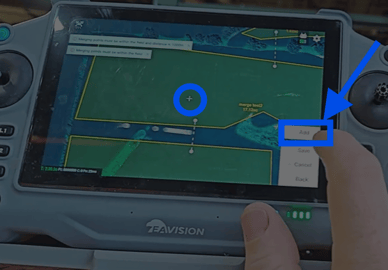

Step 2: Add Connection Route
-
Add a connection route by moving crosshairs on the screen to where you want the connection flight path to be from field to field.
-
Confirm that the route is straight and logical.
- After selecting connection point select 'Add' in bottom right corner.

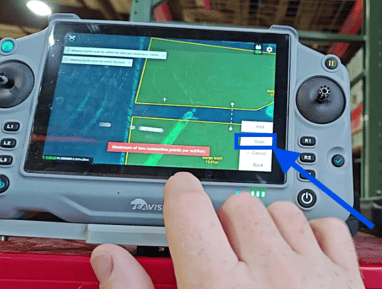

Step 3: Save Merged Field
-
Once all points are added, save the merged field.
- Name the merged field by entering name on keyboard of the RC.
- Select 'Confirm' after naming merged field.
Step 4: Operate the Merged Field
-
After confirming the merge, proceed to operate the merged field.
-
Observe the flight path created between the merged fields.
Cautionary Notes
-
Ensure all points are within the same field to avoid errors.
-
Double-check the distance between merging points to comply with the 1000 meters rule.
Tips for Efficiency
-
Familiarize yourself with the drone's interface to speed up the selection process.
-
Plan your connection routes in advance to minimize adjustments during the merging process.
