      J150 Monitoring Battery Percentage in the Charger on your RC

      This article outlines how to monitor the battery percentage level of the battery in the charging station on the J150. The helps the operator perform at a highly efficient level with battery swaps.



      HOW TO MONITOR THE BATTERY PERCENTAGE WHILE IN THE CHARGER



      Click Here for a J150 Charging Station

      First step to accessing charger status and battery in the charger information, you will need to connect your RC to the charging station.

      Click Here for the article on J150 Connecting the RC to your Charger.



      • Once your RC is connected to the charger, insert a battery into the charging station. It will take a few seconds to boot up and read the battery in the charger.

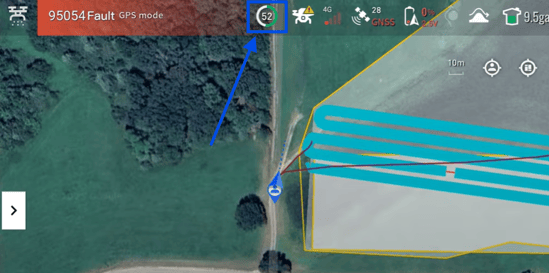

      • Once the charging station reads the battery inserted,  go to your Operation screen on your RC. At the top in the middle, a circle with a number in the middle will be displayed. This is showing the current charge percentage of the battery in the charging station. This number will increase as the battery charge increases.
        (Picture Shown Below).

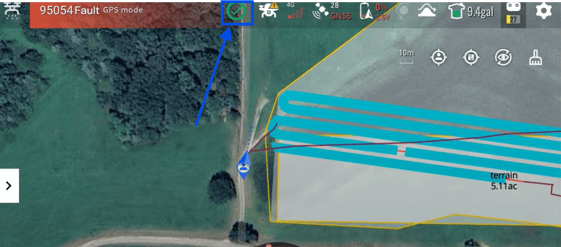

      • Once the battery in the charger is fully charged, the circle and number icon will turn into a green check mark with a circle around it.  Again, this is showing that the battery in the charger is fully charged.
        (Picture Shown Below).



      The monitoring battery percentage in the charger allows for perfect battery swap timing during operations. This allows the operator to know exactly when to swap batteries, keeping your drone in the air longer. Less waiting for batteries to finish charging due to inefficient timing when swapping batteries in the charging station.

      Click Here for a J150 Charging Station
