      J150 (RC) Sim Card Installation and APN link.

      This article outlines the steps to insert and activate a SIM card in the J150 remote controller, ensuring proper setup for mobile network connectivity.



                                 SIM Card Installation and Activation for J150 Controller

      Key Steps

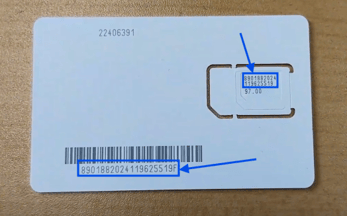

      1. Prepare the SIM Card 0:00

      • Locate the SIM card received in your package.
      • Note down the ICCID serial number at the bottom of the card.
      • Take a picture of the SIM card for submission on the customer onboarding form.

      rc simcard

      2. Insert the SIM Card 1:05

      • Break out the smallest SIM card size from the package.
      • Open the controller and locate the SIM slot.
      • Insert the SIM card into the slot.

      Screenshot 2025-09-25 113024Screenshot 2025-09-25 113200

      3. Power On the Controller 1:19

      • Turn on the J150 controller and wait for it to boot up.

      Screenshot 2025-09-25 113428

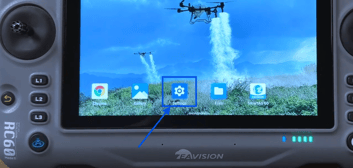

      4. Access Settings Menu 1:35

      • Click on the Settings button (blue gear icon) near the bottom of your RC screen.

      Screenshot 2025-09-25 113736

      5. Change Keyboard Settings 1:46
      • Scroll down to 'System' and select 'Language & input'.
      • Click ‘On-Screen Keyboard' and select 'Gboard'.
      • Remove any unnecessary languages, leaving only English.



      6. Connect to Wi-Fi 2:19

      • Navigate to 'Network & Internet'.
      • Ensure you are connected to Wi-Fi before proceeding.

      7. Configure Mobile Network 2:31

      • Click on 'Mobile Network'.
      • Scroll down to 'Access Point Names'.

      8. Add New Access Point Name (APN) 2:57

      • Click the ‘+’ icon to add a new APN.
      • Name the APN (e.g., 'ASD').
      • In the APN field, enter 'iot.cc'.
      • Click 'OK'.

      9. Save APN Settings 3:54

      • Click the 3 dots in the upper right hand corner
      • Click “save”
      • Your sim will now be linked to T-Mobile



      10. Test Mobile Network Connection 4:12

      • Turn off Wi-Fi.
      • Check for 'LTE' indicator next to the data connection bar.
      • Open Chrome to verify internet connectivity without Wi-Fi.
