This article outlines the Dynamic Tank Icon, how it works and how to utilize this for increased efficiency during your operations
- In your Operations screen on your remote controller (RC). You will notice when performing a spray operation, a Tank Icon will be shown. This icon shows where at on the field you are estimated to have an empty tank based on how full your tank is.

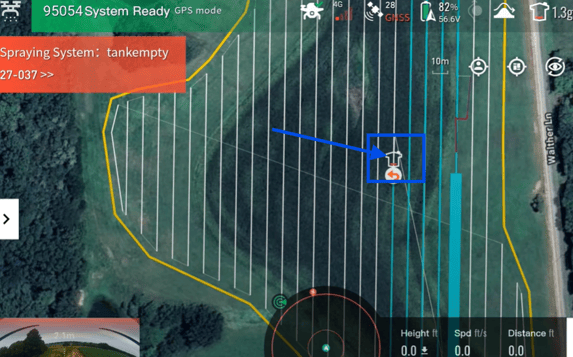

(The Picture Shown Below shows the tank icon on an empty tank, so it's displayed right where spaying left off.)
- As you are in the process of filling the tank up, the dynamic tank Icon will continually update during filling the tank and moving farther down your field operation. This allows you to adjust how much you put in the tank so it runs out close to the Home point for you to refill it. This greatly improves your operations efficiency, and with less wasted ferrying time from drones running out on the opposite side of the field.

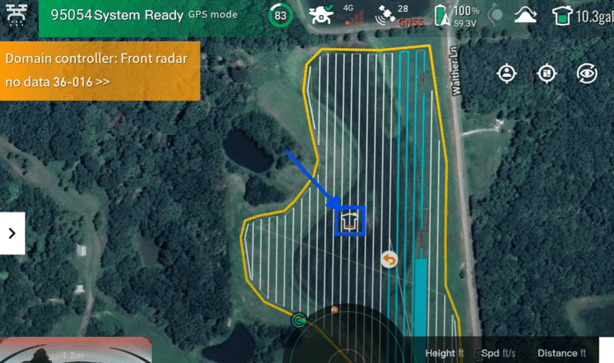

(The Picture Shown Below shows the tank icon moved during filling the tank.)
- Additionally, you can view your Tank Fullness in gallons in your operations screen on your RC at the top right corner.

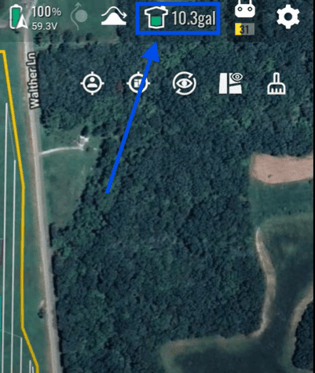

(Picture Below Shows 10.3 gal in Tank)
If this is not working, you may need to check your weight sensors or weight sensor lines for damage or faults.
Click Here for an article on J150 troubleshooting weight sensors.
PRODUCTS:
Click Here for a J150 Weighing Sensor Module
Click Here for a J150 Weight Sensor Line
Click Here for a J150 Spray Tank Assembly
