J150 Terminal Busbar Wiring Diagram

Screenshot 2026-03-27 122619

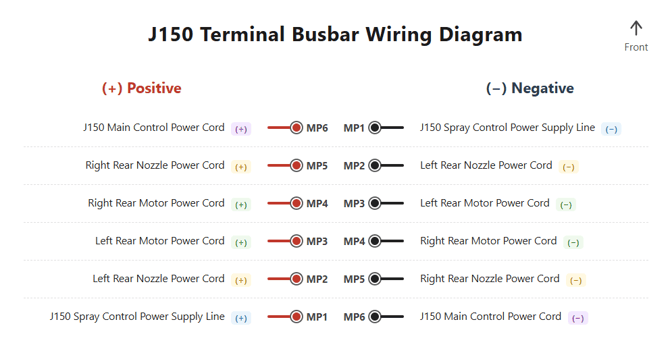

J150 Terminal Busbar Wiring Diagram – Rear Busbar

The J150 rear terminal busbar has two sides: a positive (+) busbar with terminals labeled MP1 through MP6, and a negative (−) busbar with terminals also labeled MP1 through MP6. The front of the aircraft is used as the reference orientation.

Positive (+) Busbar Terminal Assignments

  • MP6 – J150 Main Control Power Cord (+)
  • MP5 – Right Rear Nozzle Power Cord (+)
  • MP4 – Right Rear Motor Power Cord (+)
  • MP3 – Left Rear Motor Power Cord (+)
  • MP2 – Left Rear Nozzle Power Cord (+)
  • MP1 – J150 Spray Control Power Supply Line (+)

Negative (−) Busbar Terminal Assignments

  • MP1 – J150 Spray Control Power Supply Line (−)
  • MP2 – Left Rear Nozzle Power Cord (−)
  • MP3 – Left Rear Motor Power Cord (−)
  • MP4 – Right Rear Motor Power Cord (−)
  • MP5 – Right Rear Nozzle Power Cord (−)
  • MP6 – J150 Main Control Power Cord (−)

Notes

The positive and negative busbars mirror each other in terminal numbering. On the positive side, terminal numbers descend from MP6 at the top to MP1 at the bottom. On the negative side, terminal numbers ascend from MP1 at the top to MP6 at the bottom. All positive leads use red wiring and all negative leads use black wiring per standard convention.
