J150 Terrain Following & Reading Terrain and Obstacles on RC

This article contains How to read terrain and obstacles while operating on your RC. As well as a video of the J150 terrain following.

                   Video: J150 Terrain Following

How to read the terrain and obstacles on your J150 RC

• Horizontal Radar Reading is located in the circle at the bottom middle of the RC screen. This shows obstacles 360 degrees around the drone and will depict them as (green farther away), (orange closer), (red very close to the obstacle). The horizontal radar reading also shows the drone's current position in the middle with a green and white arrow, as well as the current flight path by the white line coming from the drone's position.

(Pictures of the horizontal radar reading below)

• Vertical Lidar Reading is located in the rectangle at the bottom of the RC screen, just left of the horizontal radar reading. The Vertical reading shows the drone's position by the green and white arrow icon, The Path forward of the drone by the dotted white lines ahead of the drone icon. the ground terrain or what is beneath the drone by the gray section and line at the bottom of the reading. The height will also be displayed on the right side of the horizontal reading.

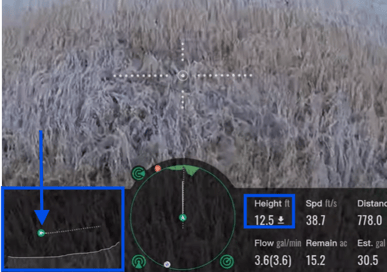

(picture below shows drone climbing up slope, see terrain displayed slanted up, also notice the height shown on the right.)
