J150/ J70 Base Station/RTK Settings Overview

This article outlines the steps to configure RTK settings on J70 and J150 drones, ensuring proper connection to RTK sources.





Base Station/ RTK Settings Configuration for J70 and J150 Drones

Steps:

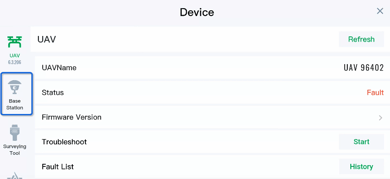

1. Access Device Settings

generated-image-at-00:00:10

  • From the start screen, navigate to the right side of the screen.

  • Select the 'Device' option.



2. Select Base Station

  • On the left side, choose 'Base Station' to access RTK source options.

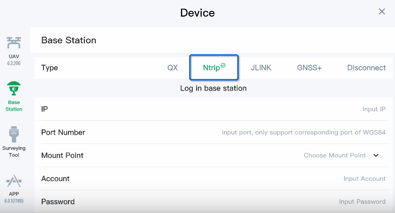

3. Configure Ntrip Settings

  • Select 'Ntrip' as your RTK source.

  • Input the following information:

    • IP address

    • Port number

    • Mount point

    • Account username

    • Account password (your Ntrip account credentials)

  • Ensure all fields are filled out correctly.



4. Connect to Ntrip

generated-image-at-00:00:40

  • Scroll down to the bottom of the screen.

  • Click on 'Connect' to log into Ntrip.



5. Use J-Link for Base Station

generated-image-at-00:00:48

  • If you wish to use your base station, select 'J-Link'.

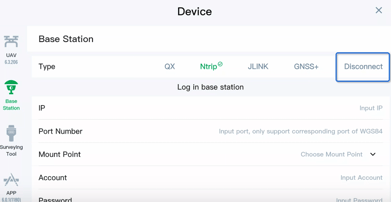

6. Disconnect from RTK (if necessary)

  • If you do not wish to use RTK, navigate to the right side and select 'Disconnect'.



Additional ways to access your RTK settings:

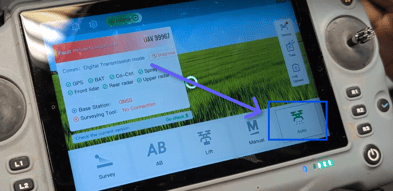

  • Select  'Auto' on your remote controller screen.

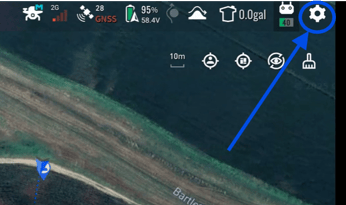

  • Then select 'settings' (gear Icon).

Screenshot 2025-09-08 111925

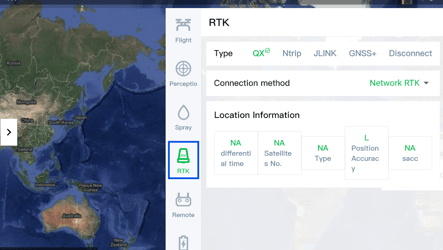

  • Now select 'RTK'.

Quick Note: From here you can see your readouts of location.

  • If you do not wish to use RTK, navigate to the right side and select 'Disconnect'





Cautionary Notes

  • Double-check all entered information for accuracy to avoid connection issues.

  • Ensure that your drone is within range of the selected RTK source for optimal performance.

Tips for Efficiency

  • Familiarize yourself with the layout of the settings menu to speed up the process.
