      T30 Battery Usage Guide

      This article covers battery usage, charging, storage, and safety information.

      Battery

      1. Power Button- press once to view power level, press then press and hold to power on battery.
      2. Status LEDs-
        1. 4lights = 88-100%
        2. 3lights =63-74%
        3. 2lights =38-49%
        4. 1light = 13-24%
      3. Handle
      4. Clamp
      5. Power Port
      6. Rubber Caps

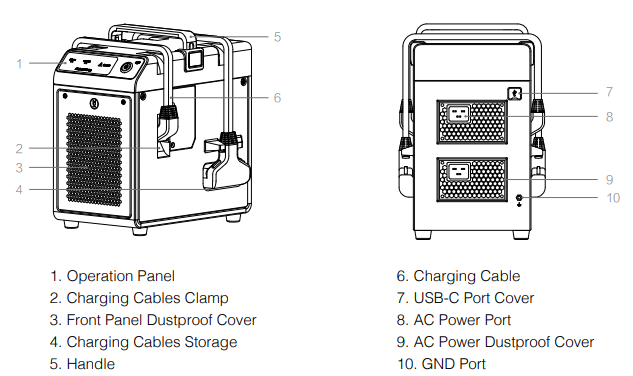

      Charging Station

      Charging Station Panel

      Charging

      • The Charging station can run on both 120V and 240V input.
      • It features two power supply ports, it will run with just one plugged in.
        • On 120V, each power supply port will pull 13 amps
        • On 240V, each power supply will pull 16 amps
        • Make sure your breaker can handle the load
        • For super fast charging you must either plug in both charging cables into our supplied 50amp 240v adapter or you can splice both charging cables into a 50amp plug that can be plugged directly into your generator.
      • Plug in Charging Station
      • Power on charging station
      • Plug in charging cable into power port on battery
        • Charging station will automatically charge battery to appropriate power level
          • Note green led will blink on station while charging
            • A solid green led means battery is fully charged
        • Once the battery is charged, if the second battery is plugged in the charger will automatically switch and start charging the second battery.
      • Once battery is charged removed charging cable

      Storage

        • Ensure battery is turned off while not in use on drone
        • Store batteries at power levels between 40%-60%
          • Battery will self discharge to 97% after being fully charged for 24hours
          • After 7 days battery will self discharge to 60%
        • Store in dry environments
        • If storing for more than 3 months - it's recommended to store the battery in a battery safety bag in temperatures between -4° to 104°.
        • Disconnect battery from drone if storing for extended periods of time
      • If a battery has not been charged or discharged for five months or more, the battery will no longer be covered by the warranty.

      Safety

      • DO NOT leave battery near heat sources
      • DO NOT leave battery inside vehicle during hot days
      • DO NOT use swollen, leaking, or damaged batteries
        • If this occurs please contact us for assistance
      • DO NOT disassemble or pierce a battery in any way
      • If any electrolytes make contact with your skin or eyes, immediately wash the area with water and contact a doctor.
      • Always use clean dry cloth to clean battery terminals
      • DO NOT fly drone when the battery power level is below 15%
      • If operating in a low-temperature environment, make sure the battery is at least above 41°.
      • Please refer to Battery guide and charging station guide for all warnings associated with both the battery and charger.

      Generator Sizing

      • For all day field operations and fast charging. You need a generator with a 50 amp 240V power plug. Typically these will have a power rating of 9000 - 9500 running watts.
