Correct install height for the front and rear landing gear crossbeams on the EAV J150.

Crossbeam Install Height:

The landing gear crossbeams on the EAV J150 must be installed at the correct height to ensure the aircraft sits level and maintains proper ground clearance. Installing a crossbeam too high or too low can throw off the drone's stance, affecting how it sits on uneven ground and the clearance around the tank, pump, and spray components underneath. Use the measurements below to confirm each crossbeam is set correctly during assembly or after any landing gear service, measuring straight up from the ground to the top of the bar.

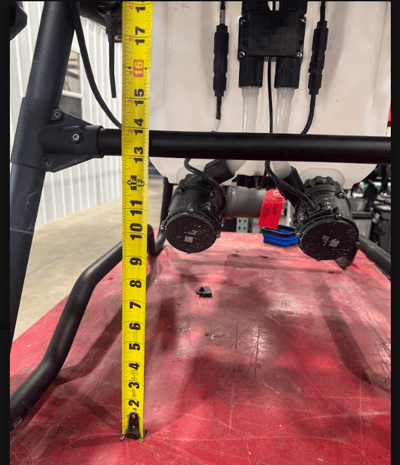

• Front: 14" from the ground to the top of the bar


• Rear: 10" from the ground to the top of the bar



Once both crossbeams are installed at the correct height, the landing gear should sit stable and level. Confirm the height is the same on both sides of each crossbeam — an uneven measurement side to side usually means the plastic mounts aren't fully seated. Check these mounts closely when making adjustments, since a mount that isn't seated correctly will throw off the height and leave the gear unstable.
