J150 Specs and Capabilities.

This article outlines J150 Specs and capabilities list to provide the user with as much information as possible. Including Drone, Spray System, Spreader System, Speed, Battery, Charger, Data Link, FPV, and Wiring.

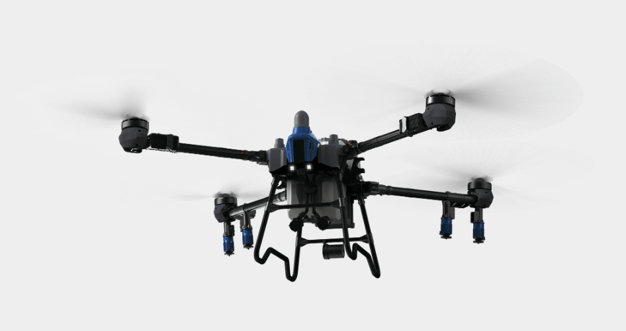

EAV J150 Specs

Spray System

• 20 Gallon liquid tank.
• 10.5 gallons per minute flow rate with 4 nozzles.
• 5.25 gallons per minute flow rate with 2 nozzles.
• 10-300 Micron droplet sizes. (full flow rate at every micron size).
• Swath Test showing 40+ feet capabilities. Click Here for J150 Swath Test.

  Click here for J150 Spray Tank
  Click Here for J150 Mist Nozzle assembly
  Click Here for J150 Nozzle motor.
  Click Here for J150 Nozzle ESC

Spreader System

• 180 LB Capacity.
• Auger fed.
• Fully open top with aluminum grate.

  Click Here for J150 Spreader system

Speed

• 45 FPS=30 MPH with full obstacle avoidance and terrain following.
• Currently Testing 40 MPH (running more testing before releasing).



Battery

• 45,000 MAH - 14s/58 volts - 45 lbs.
• Will spray out a full tank at 2 GPA in most situations.

Click Here for J150 Battery

Charger

• 13,000 Watts for fast charging, can be dialed down.

Click Here for J150 Charging Station

Signal/ Data Link

• Direct Link to RC with frequency hopping.
• Super Link Relay box to triangulate signal.
• 4G connection (from drone to RC, and drone to Android Tablet/Phone.)

FPV

• Camera is a fixed fisheye with virtual gimal.

Click Here for J150 FPV Assembly

Wiring

• Completely new wiring on power and signal.
• Does not use a bus bar system like the J100.  (Multiple components are not on the same harness or cable, making diagnostics and troubleshooting far superior.)



  Click Here for J150New User Guide!
